Optimization Report
Machine State
Idle
Part ID: --
Program: --
X Axis: 0.000
Y Axis: 0.000
Z Axis: 0.000
Spindle Speed: 0
Spindle Load: 0%
Feedrate: 0
Tool ID: --
Current Time: --:--:--
Spindle Load
0 - 50% (Low)
51 - 85% (Medium)
86 - 100% (High)
Digital Twin Setup:
• Stock: 450mm x 200mm (Silver)
• Tool: Yellow Cylinder
• Simulation loop data
Quality Analysis Report
Sensor Features
Temperature Mean: 0.00
Temperature SD: 0.00
Current Mean: 0.00
Current SD: 0.00
Vibration Mean: 0.00
Vibration SD: 0.00
Smart Holder Feature
Torque X Mean: 0.00
Torque X SD: 0.00
Torque Y Mean: 0.00
Torque Y SD: 0.00
Torque Z Mean: 0.00
Torque Z SD: 0.00
DataItemNameTypeUnitsDescriptionMTConnect TimestampValue
avail availability AVAILABILITY - Agent availability and connectivity status -- --
asset_chg asset_changed ASSET_CHANGED - CNC Parameter: asset_chg -- --
part_id part_id PART_ID - Current Part Identifier -- --
Xabs Xabs POSITION MILLIMETER X-axis absolute coordinate position -- --
Xcom Xcom POSITION MILLIMETER CNC Parameter: Xcom -- --
Xload Xload LOAD PERCENT CNC Parameter: Xload -- --
Yabs Yabs POSITION MILLIMETER Y-axis absolute coordinate position -- --
Ycom Ycom POSITION MILLIMETER CNC Parameter: Ycom -- --
Yload Yload LOAD PERCENT CNC Parameter: Yload -- --
Zabs Zabs POSITION MILLIMETER Z-axis absolute coordinate position -- --
Zcom Zcom POSITION MILLIMETER CNC Parameter: Zcom -- --
Zload Zload LOAD PERCENT CNC Parameter: Zload -- --
Cabs Cabs ANGLE DEGREE CNC Parameter: Cabs -- --
exec execution EXECUTION - CNC Parameter: exec -- --
mode cont_mode CONTROLLER_MODE - Current operational state (Manual/Auto/MDI) -- --
pgm program PROGRAM - Filename of the currently executing NC program -- --
line line LINE - CNC Parameter: line -- --
block block BLOCK - CNC Parameter: block -- --
g_step_label g_code_step_label PROCESS_STEP - Current G-code step label or comment -- --
Fact Fact PATH_FEEDRATE MILLIMETER/MINUTE Current actual feed rate of the tool -- --
Fovr Fovr PATH_FEEDRATE PERCENT CNC Parameter: Fovr -- --
tool tool_id TOOL_ID - Numerical identifier for the active tool -- --
Sspeed Sspeed ROTARY_VELOCITY REVOLUTION/MINUTE Rotational velocity of the primary spindle -- --
Scom Scom ROTARY_VELOCITY REVOLUTION/MINUTE CNC Parameter: Scom -- --
Sovr Sovr ROTARY_VELOCITY PERCENT CNC Parameter: Sovr -- --
Sload Sload LOAD PERCENT Percentage of maximum spindle motor load -- --
h_press h_press PRESSURE PASCAL CNC Parameter: h_press -- --
c_level coolant_level LEVEL - CNC Parameter: c_level -- --
curr_sd current_sd AMPERAGE AMPERE 60 sec Current standard deviation -- --
temp_sd temperature_sd TEMPERATURE CELSIUS 60 sec Temperature standard deviation -- --
vibr_sd vibration_sd VIBRATION HERTZ 60 sec Vibration standard deviation -- --
curr_mean current_mean AMPERAGE AMPERE 60 sec Current Mean value -- --
temp_mean temperature_mean TEMPERATURE CELSIUS 60 sec Temperature Mean value -- --
vibr_mean vibration_mean VIBRATION HERTZ 60 sec Vibration Mean value -- --
tx_sd torque_x_sd TORQUE NEWTON_METER Smart Holder X axes torque standard deviation -- --
ty_sd torque_y_sd TORQUE NEWTON_METER Smart Holder Y axes torque standard deviation -- --
tz_sd torque_z_sd TORQUE NEWTON_METER Smart Holder Z axes torque standard deviation -- --
tx_mean torque_x_mean TORQUE NEWTON_METER Smart Holder X axes torque Mean value -- --
ty_mean torque_y_mean TORQUE NEWTON_METER Smart Holder Y axes torque Mean value -- --
tz_mean torque_z_mean TORQUE NEWTON_METER Smart Holder Z axes torque Mean value -- --
MTConnect Probe Response
<?xml version="1.0" encoding="UTF-8"?>
<MTConnectDevices xmlns:m="urn:mtconnect.org:MTConnectDevices:1.7" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="urn:mtconnect.org:MTConnectDevices:1.7">
  <Header createdAt="2023-10-27T12:00:00Z" version="1.7" assetBufferSize="1024" assetCount="0" bufferSize="131072" instanceId="1" sender="EngiletAdapter"/>
  <Devices>
    <Device id="dev" name="EngiletCNC" uuid="engilet_001">
      <Description>Advanced CNC Machine - Mazak Inspired Configuration</Description>
      <DataItems>
        <DataItem category="EVENT" id="avail" name="availability" type="AVAILABILITY"/>
        <DataItem category="EVENT" id="asset_chg" name="asset_changed" type="ASSET_CHANGED"/>
        <!-- Added PartId DataItem for tracking current workpieces -->
        <DataItem category="EVENT" id="part_id" name="part_id" type="PART_ID"/>
      </DataItems>
      <Components>
        <Axes id="axes" name="Axes">
          <Components>
            <Linear id="x" name="X">
              <DataItems>
                <DataItem category="SAMPLE" id="Xabs" name="Xabs" type="POSITION" subType="ACTUAL" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Xcom" name="Xcom" type="POSITION" subType="COMMANDED" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Xload" name="Xload" type="LOAD" units="PERCENT"/>
              </DataItems>
            </Linear>
            <Linear id="y" name="Y">
              <DataItems>
                <DataItem category="SAMPLE" id="Yabs" name="Yabs" type="POSITION" subType="ACTUAL" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Ycom" name="Ycom" type="POSITION" subType="COMMANDED" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Yload" name="Yload" type="LOAD" units="PERCENT"/>
              </DataItems>
            </Linear>
            <Linear id="z" name="Z">
              <DataItems>
                <DataItem category="SAMPLE" id="Zabs" name="Zabs" type="POSITION" subType="ACTUAL" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Zcom" name="Zcom" type="POSITION" subType="COMMANDED" units="MILLIMETER"/>
                <DataItem category="SAMPLE" id="Zload" name="Zload" type="LOAD" units="PERCENT"/>
              </DataItems>
            </Linear>
            <Rotary id="c" name="C">
              <DataItems>
                <DataItem category="SAMPLE" id="Cabs" name="Cabs" type="ANGLE" subType="ACTUAL" units="DEGREE"/>
              </DataItems>
            </Rotary>
          </Components>
        </Axes>

        <Controller id="cont" name="Controller">
          <Components>
            <Path id="path" name="path">
              <DataItems>
                <DataItem category="EVENT" id="exec" name="execution" type="EXECUTION"/>
                <DataItem category="EVENT" id="mode" name="cont_mode" type="CONTROLLER_MODE"/>
                <DataItem category="EVENT" id="pgm" name="program" type="PROGRAM"/>
                <DataItem category="EVENT" id="line" name="line" type="LINE"/>
                <DataItem category="EVENT" id="block" name="block" type="BLOCK"/>
                <DataItem category="EVENT" id="g_step_label" name="g_code_step_label" type="PROCESS_STEP"/>
                <DataItem category="SAMPLE" id="Fact" name="Fact" type="PATH_FEEDRATE" subType="ACTUAL" units="MILLIMETER/MINUTE"/>
                <DataItem category="SAMPLE" id="Fovr" name="Fovr" type="PATH_FEEDRATE" subType="OVERRIDE" units="PERCENT"/>
                <DataItem category="EVENT" id="tool" name="tool_id" type="TOOL_ID"/>
              </DataItems>
            </Path>
          </Components>
        </Controller>

        <Systems id="systems" name="Systems">
          <Components>
            <Rotary id="spindle" name="Spindle">
              <DataItems>
                <DataItem category="SAMPLE" id="Sspeed" name="Sspeed" type="ROTARY_VELOCITY" subType="ACTUAL" units="REVOLUTION/MINUTE"/>
                <DataItem category="SAMPLE" id="Scom" name="Scom" type="ROTARY_VELOCITY" subType="COMMANDED" units="REVOLUTION/MINUTE"/>
                <DataItem category="SAMPLE" id="Sovr" name="Sovr" type="ROTARY_VELOCITY" subType="OVERRIDE" units="PERCENT"/>
                <DataItem category="SAMPLE" id="Sload" name="Sload" type="LOAD" units="PERCENT"/>
              </DataItems>
            </Rotary>
            <Hydraulic id="hyd" name="Hydraulic">
              <DataItems>
                <DataItem category="SAMPLE" id="h_press" name="h_press" type="PRESSURE" units="PASCAL"/>
              </DataItems>
            </Hydraulic>
            <Coolant id="coolant" name="Coolant">
              <DataItems>
                <DataItem category="EVENT" id="c_level" name="coolant_level" type="LEVEL" subType="ACTUAL"/>
              </DataItems>
            </Coolant>

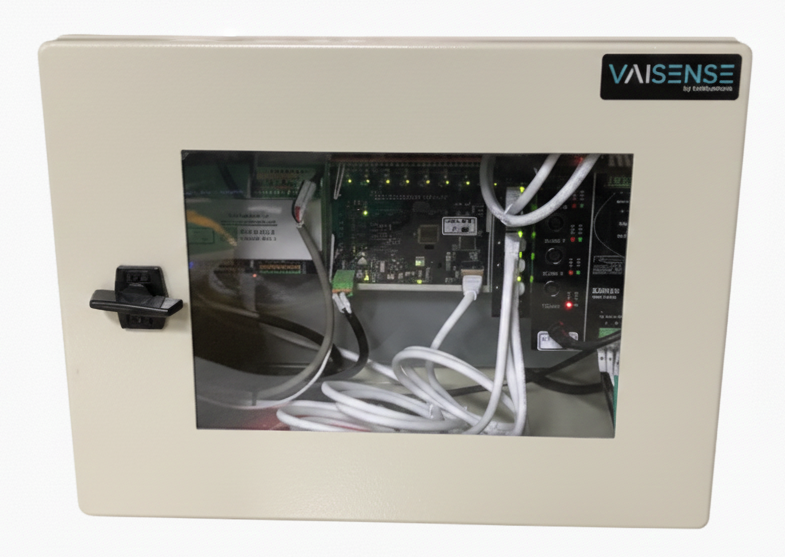

            <Generic id="sensorbox" name="SensorBOX">
              <DataItems>
                <!-- Standard Deviation Items -->
                <DataItem category="SAMPLE" id="curr_sd" name="current_sd" type="AMPERAGE" subType="STANDARD_DEVIATION" units="AMPERE"/>
                <DataItem category="SAMPLE" id="temp_sd" name="temperature_sd" type="TEMPERATURE" subType="STANDARD_DEVIATION" units="CELSIUS"/>
                <DataItem category="SAMPLE" id="vibr_sd" name="vibration_sd" type="VIBRATION" subType="STANDARD_DEVIATION" units="HERTZ"/>
                <!-- Mean (Average) Items -->
                <DataItem category="SAMPLE" id="curr_mean" name="current_mean" type="AMPERAGE" subType="AVERAGE" units="AMPERE"/>
                <DataItem category="SAMPLE" id="temp_mean" name="temperature_mean" type="TEMPERATURE" subType="AVERAGE" units="CELSIUS"/>
                <DataItem category="SAMPLE" id="vibr_mean" name="vibration_mean" type="VIBRATION" subType="AVERAGE" units="HERTZ"/>
              </DataItems>
            </Generic>
            <Auxiliary id="sholder" name="SmartHolder">
              <DataItems>
                <!-- Standard Deviation Items -->
                <DataItem category="SAMPLE" id="tx_sd" name="torque_x_sd" type="TORQUE" subType="STANDARD_DEVIATION" units="NEWTON_METER"/>
                <DataItem category="SAMPLE" id="ty_sd" name="torque_y_sd" type="TORQUE" subType="STANDARD_DEVIATION" units="NEWTON_METER"/>
                <DataItem category="SAMPLE" id="tz_sd" name="torque_z_sd" type="TORQUE" subType="STANDARD_DEVIATION" units="NEWTON_METER"/>
                <!-- Mean (Average) Items -->
                <DataItem category="SAMPLE" id="tx_mean" name="torque_x_mean" type="TORQUE" subType="AVERAGE" units="NEWTON_METER"/>
                <DataItem category="SAMPLE" id="ty_mean" name="torque_y_mean" type="TORQUE" subType="AVERAGE" units="NEWTON_METER"/>
                <DataItem category="SAMPLE" id="tz_mean" name="torque_z_mean" type="TORQUE" subType="AVERAGE" units="NEWTON_METER"/>
              </DataItems>
            </Auxiliary>
          </Components>
        </Systems>
      </Components>
    </Device>
  </Devices>
</MTConnectDevices>
Live MTConnect Streams
Refreshing every 2s...
Loading...
Archived Technical Reports
ID UUID Date/Time View Action Quality CV
83 D079724D-517E-43BF-B638-72431EADF897 2026-02-12 23:32:01 Browse Good
57 7b7eef8f-10e1-4bb0-87a5-5df1aa226799 2026-02-10 09:53:46 Browse Good
56 None 2026-02-07 13:35:42 Browse Good
54 None 2026-02-07 13:21:34 Browse Good
52 None 2026-02-07 12:55:03 Browse Good
46 None 2026-02-07 11:26:09 Browse Good
Report Statistics
Total Reports
6
Monthly Breakdown
February 2026 6
Generative AI Report
None
